Field test data

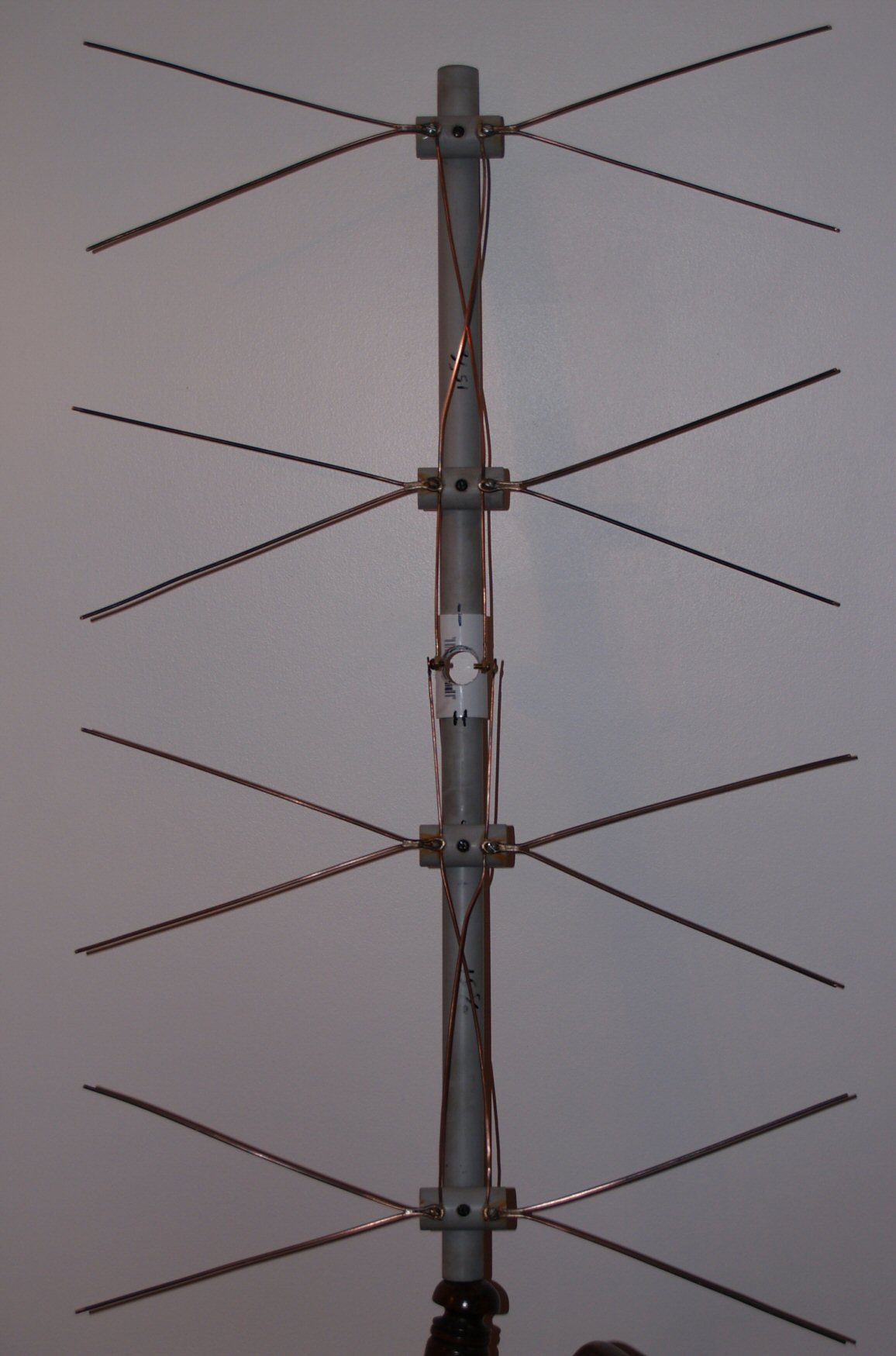

Here is an example of a kit assembled on a piece of 3/4 PVC using the notched stand-offs without the reflector as assembled this antenna is capable of bi-directional reception which is great for someone setting between 2 TV markets.

Assembled 4 bay on PVC pipe

This antenna pictured is currently in use receiving stations in 2 directions at over 40 miles.
 Results will vary depending on terrain, transmitter location and antenna mounting but performance like this is typical.

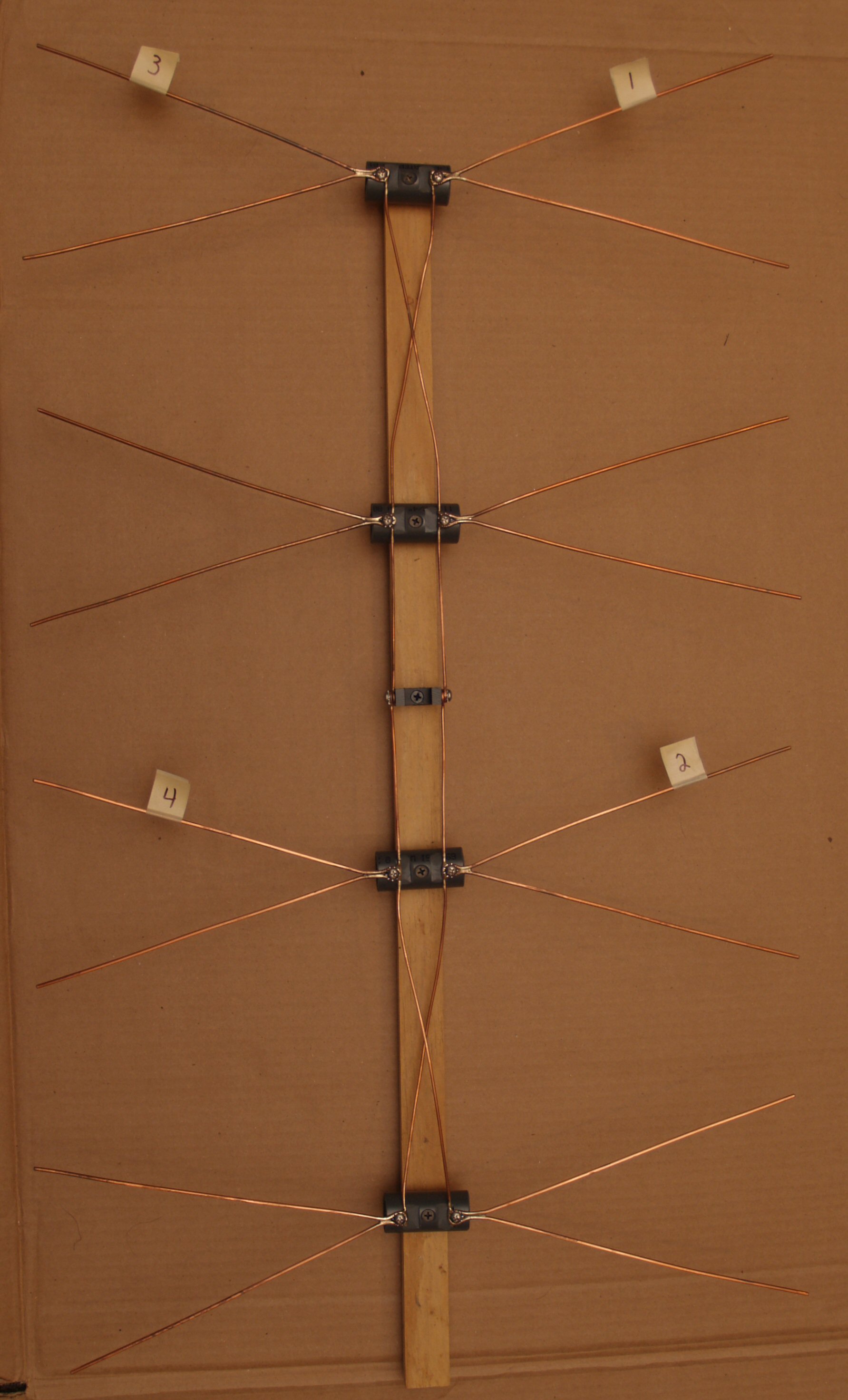

Below is an example of a kit mounted to a piece of wood using the flat back stand-offs
Assebly mounted on wood

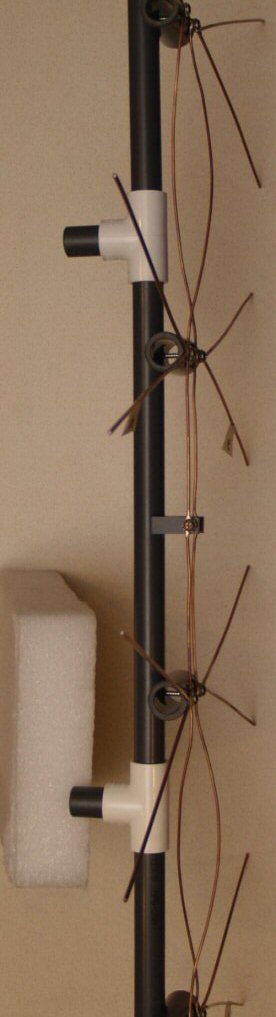

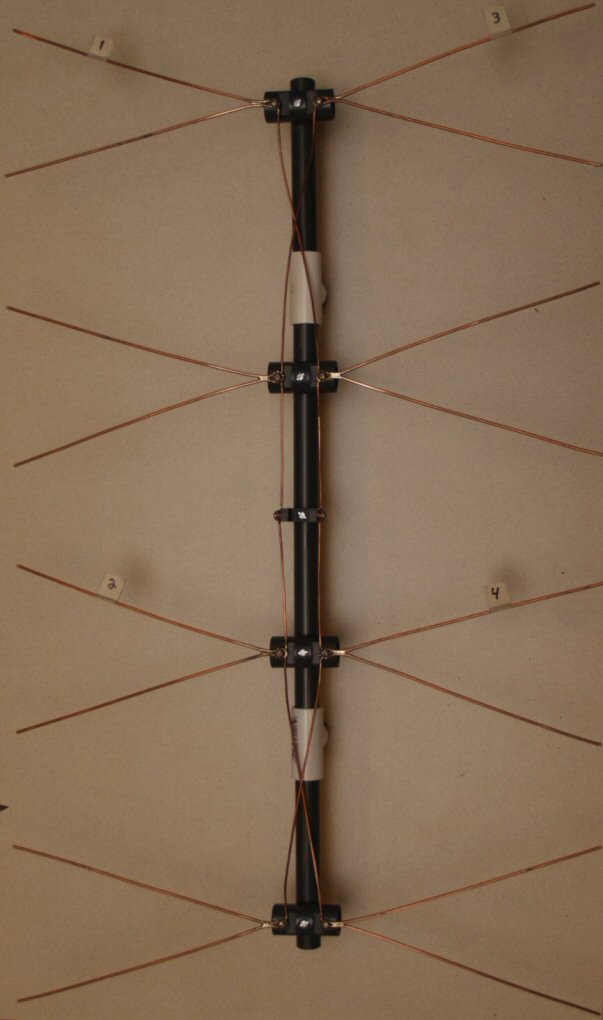

1/2" PVC Frame Front view1/2" PVC frame side view
1/2" PVC makes a nice light frame which is plenty strong enough to support the stand-offs and elements.
